HCW6024B

Functional Overview

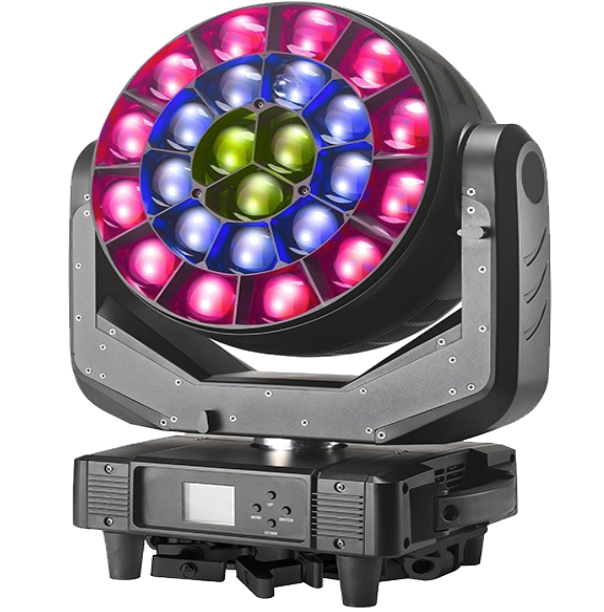

Introducing the Beam HCW6024B: a powerhouse of lighting innovation. Featuring 24*60W 4IN1 RGBW LEDs with a lifespan exceeding 50,000 hours, it delivers vibrant colors and stunning effects. With a beam angle ranging from 3.5° to 45° and advanced glass light guide technology, it offers precision and clarity in every projection. Boasting a power consumption of 1500W and a power voltage of AC 100-240V, it's both efficient and versatile. Controlled via DMX512, ArtNet, or standalone modes, and with precise Pan/Tilt movement, it offers unmatched flexibility. Constructed with durability in mind, it features IP20 protection and intelligent electronic control technology for reliable performance. From dynamic color macros to fast strobe effects, the HCW6024B is the ultimate lighting solution for any professional setting.

Tech Specs

Light Source: 24*60W 4IN1 RGBW LED
Average lifespan: > 50000 hours
Beam Angle: 3.5°- 45°
Glass light guide + PMMA high quality optical lens
Power Consumption: 1500W
Power factor PF≥0.95
Power Voltage: AC 100-240V, 50/60Hz
Net Weight: 26 kgs
Dimension: 444mm×376mm×573mm
Working temperature: -10℃~45℃
Control:
DMX Channel:21/25/33/129/106 Channels (ArtNet 106CH)
Control Modes: DMX512/mater-Slave/Auto Run/Music/ArtNet
Pan/Tilt:
Pan: 540°, accuracy 2.11°/step, fine-tuning accuracy: 0.008°;
Tilt: 270°, accuracy 0.86°/step, fine-tuning accuracy: 0.0034°;
Using magnetic coded reset system
Construction:
Display:2.4-inch TFT color display; Chinese and English languages can be switched, 180° reversible TFT Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Powercon in
Protection Rating: IP20
Electronic control technology:
Menu or console control lamp reset;
0-100% dimming;
Constant current drive mode;
Temperature sensor detection, intelligent adjustment of light source power;
Lamp information query;
Intelligent fan speed control
Features:
Full optical domain dimming, 65536-level dimming accuracy; fast strobe 1~25Hz;
Single point control of lamp beads;
Combine the three-in-one effect of dyeing, beam and bee eye;
Preset various kinds of color macro function; preset various kinds of effect macro function

Downloads

Dimensions

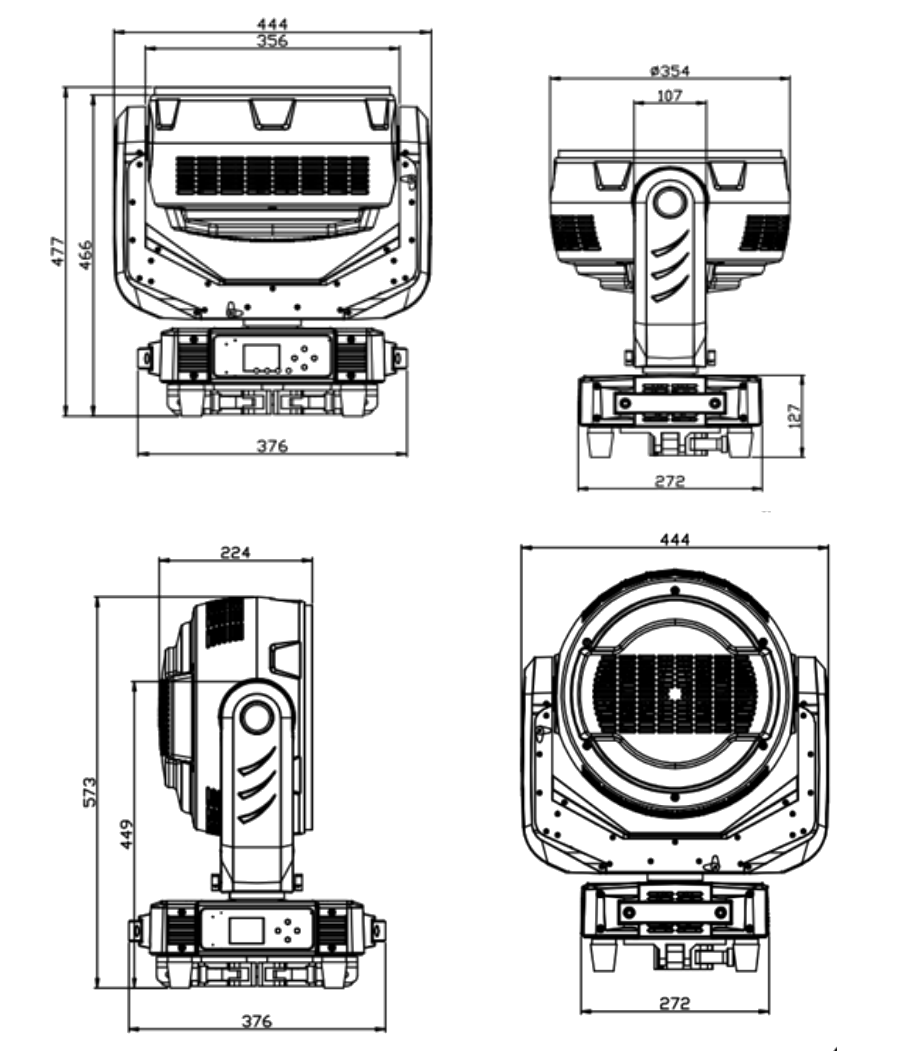

Dimensions Diagram
