SQW2540
Functional Overview
25 40W 4in1 RGBW LEDs are used in the SQW2540, which provides continuous double rotation on the pan and tilt axes. The design of its 25 RGBW LED sources in-matrix and the extremely intense angle of the optics make it special. SQW2540’s on-stage high center beam intensity allows for great visual perception of the beams in a bright setting, which is essential for the production of virtual scenery.
Technical Specifications
-
Light Source: Wash effect - 25x 40W LED 4in1 RGBW, Strobe effect - 576*0.5W 4in RGBW LED (Life expectancy> 50,000 hours)
Beam Angle: 3.2° - 45° Power Consumption: 1000W
Control Modes: DMX512, Artnet control
DMX mode: 26/33/43/143/111 Channels
Artnet mode: 111 Channels
Features: Effect configuration: full light domain dimming, 65536 level dimming accuracy; fast strobe 1 - 25Hz; preset - a kind of color macro function; preset — a kind of effect macro function
LED temperature protection & Speed of fan run automatic based on the temperature of the head.
Single LED control, zoom effect, ArtNet control, infinite Pan and tilt rotation.
Electronic control technology: Menu or console control lamp reset; 0-100% dimming; constant current drive mode; temperature sensor detection, intelligent adjustment of light source power; lamp information query; intelligent fan speed adjustment
Safety protection: Over current, over voltage, overheat protection, XY fixed lock
Pan/Tilt: Pan/Tilt infinite rotation (using photoelectric reset system); Pan: 360°, accuracy 0.86 ° / step, fine-tuning accuracy: 0.0034 °; Tilt: 540°, accuracy 2.11 ° / step, fine-tuning accuracy: 0.008 °;

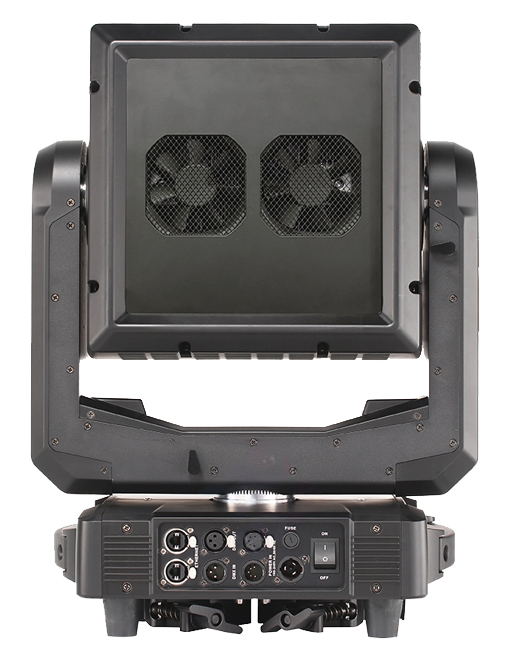

Construction: 180° reversible 2.4-inch LCD color display (Chinese or English); Data In/Out socket: 3-pin & 5-pin XLR sockets; Power Socket: Powercon in
Protection Rating: IP20

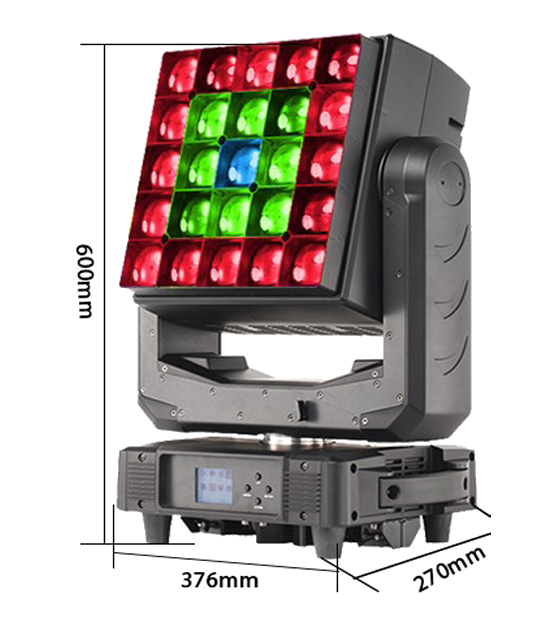

Specification: Dimension: 376mm x 270mm x 600mm, NW: 24 KGS
Standard package: Carton; Flight case optional
Certification: CE, ROHS
